Product Description:
Hydrophilic Balance, also called oil measuring apparatus(OMA®), China’s first patented product used for oil film measurement jointly developed by TRIOA and Baosteel Group, is used for measuring milligrams per square meter of DOS oil, ATBC oil, DOS-A oil and BSO oil coated on the surface of a plate. These oils have hydrophilic polar radicals, and can spread to form a certain amount of single monomolecular films on the water surface. By utilizing such characteristic of the oils, the instrument transfers the oil on the surface of the plate to the clean water surface and calculates the milligram weight of the oil volume on the unit surface of the plate by measuring the area of the monomolecular films of the oil.

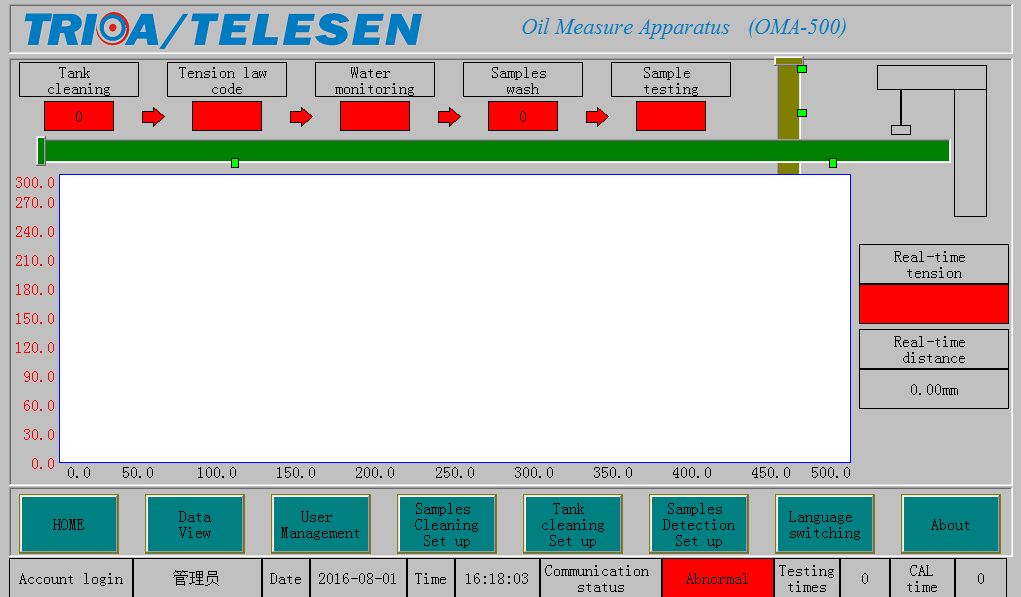

1. Operation tips are displayed on the touch screen for easy operation.
2. High automation degree with one-click calibration mode.
3. Internationally advanced high-accuracy electromagnetic force compensation technology.
4. High accuracy, high repeatability and high stability.
5. The platinum plate testing method is convenient, reliable and capable of achieving
automatic measurement.
6. Full-range net weight measurement (one-click) and quick accurate resetting.
7. Full-range automatic correction (one-click) and stable reliable measurements.
• The input power：220VAC/50HZ/1PH
• Maximum power consumption：3Kw
• Measuring range：20mg（35℃）
• Measurement accuracy：±5%（35℃）
• Sample diameter：￠60mm
• Display method：HMI
• Dimensions：1200X700X1450mm
• Overall weight：150Kg
• Tank capacity：35L
• Water source： Tap water (with purification system)
• Test temperature: 30-40 ℃ (with constant temperature heating system)
• Dimensions：1200X700X1450mm
• Overall weight：150Kg
Applicated in measuring milligrams per square meter of
DOS oil, ATBC oil, DOS-A oil and BSO oil
that coated on the surface of a metal plate or aluminum plate.
